Description

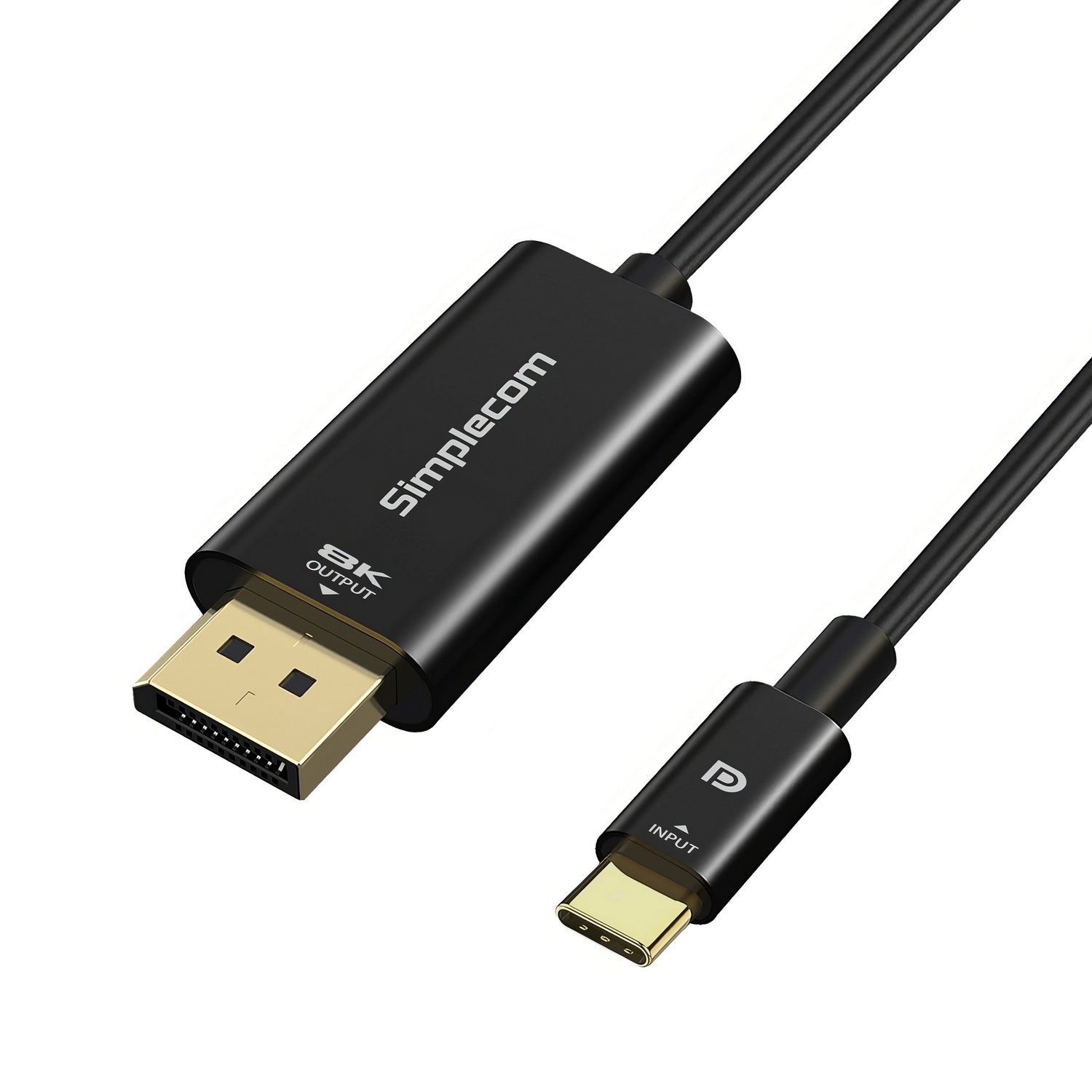

Simplecom DA323 USB-C to DisplayPort Cable DP1.4 8K@60Hz 2M

This USB-C to DisplayPort (DP) adapter cable provides a direct connection between USB-C devices and DisplayPort displays, delivering exceptional video and audio quality. It features a premium aluminum alloy shell for durability and gold-plated connectors ensure superior signal transmission. Compliant with the DP1.4 standard, it supports resolutions up to 8K at 60Hz, making it perfect for high-definition visuals.

This cable is plug-and-play, requiring no drivers or additional software. It supports mirror or extended display modes, making it ideal for multitasking or presentations. Compatible with laptops, tablets, and smartphones that support DisplayPort Alternate Mode (DP Alt Mode), this cable is a reliable and superior solution for connecting modern devices to high-resolution displays.

Features

• Directly connects USB-C devices to a DisplayPort (DP) display
• Premium and solid aluminium alloy shell connectors
• Audio support for a full range of multi-channel digital audio
• Compliant with the DP1.4 standard
• Supports maximum resolution up to 8K@60Hz
• Supports mirror or extend mode for laptop computers
• Plug-and-play, no driver or software required
• Gold-plated connectors resist corrosion, improve the signal quality
• Compatible with smartphones or laptops with DisplayPort Alternate Mode (DP Alt Mode)

Specification

• Input: USB-C Male
• Output: DisplayPort
• DisplayPort Version: 1.4
• DP Locking Mechanism: No
• Bandwidth: up to 32Gbps
• Max Resolution Support: 8K@60Hz (7680x4320), 4K@144Hz (3840x2160), 2K@165Hz (2560x1440), 1080p@240Hz (1920x1080)
• Cable Length: 2.0m

System Requirements

• Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support, Thunderbolt 3 and 4 ports.
• Operating System: Windows 10 or above, macOS 10.12 or above, ChromeOS, Android

Important Note

• Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• This cable is unidirectional and only converts from USB-C to DisplayPort.
• For 8K compatibility, 8K enabled USB-C port and display are required (e.g Intel Iris Xe Graphics)

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
