Description

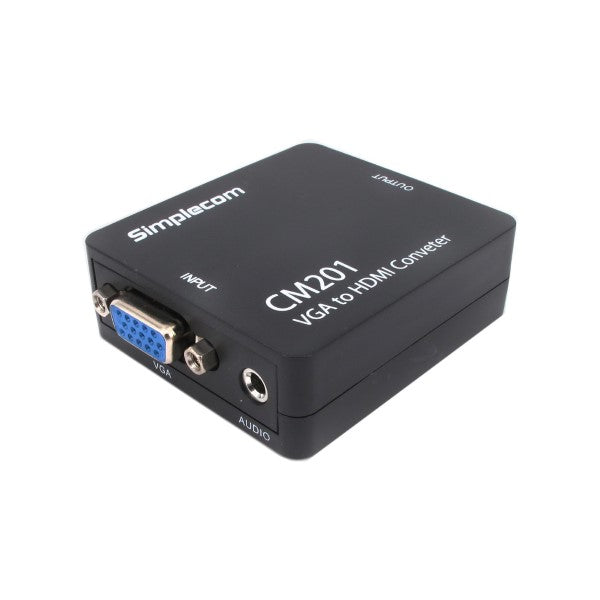

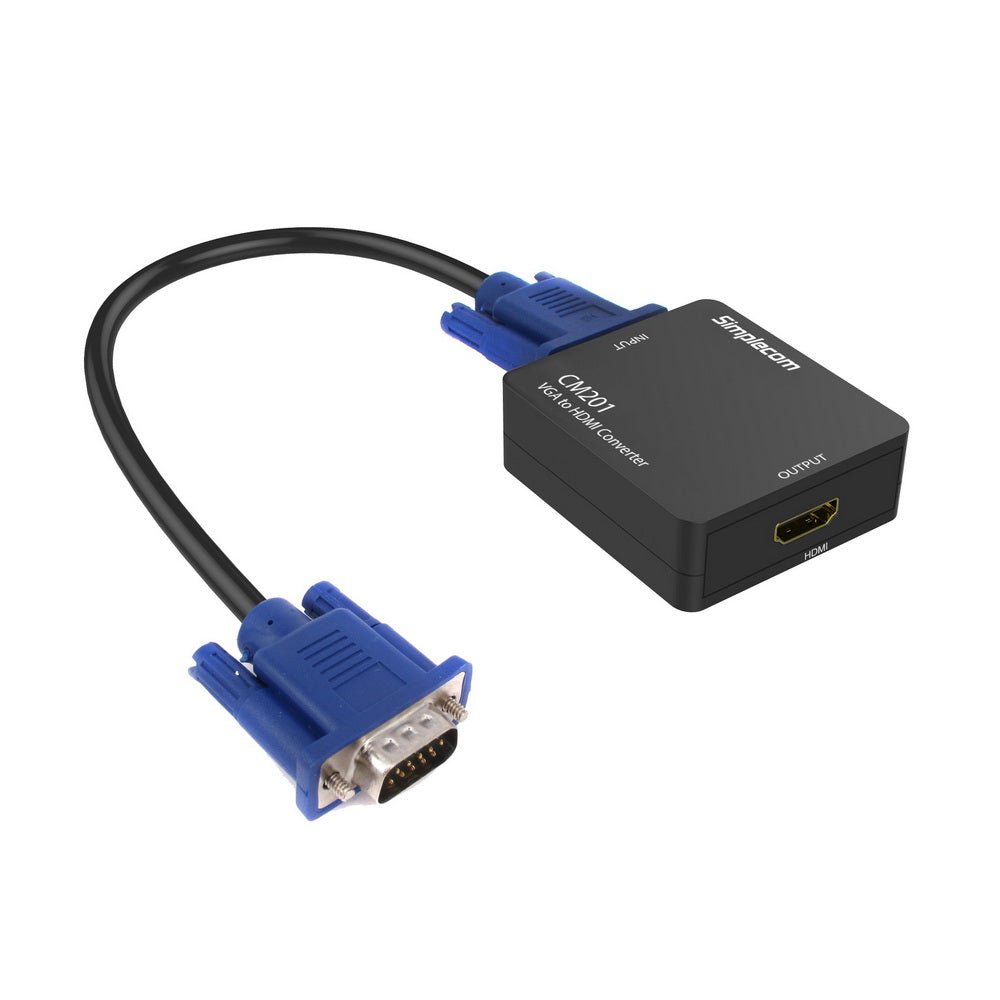

Simplecom CM201 VGA to HDMI Converter allows you to convert analog VGA signals to digital HDMI signals. The converter will take audio from the 3.5mm audio input and powered by USB, making it ideal for connecting PCs and laptops to HDMI displays such as HDTVs.

Features

VGA to HDMI adapter offers you a convenient way to connect PCs, Laptops with VGA to displays such as Projectors, Monitors, and HDTVs with HDMI

The converter will take audio from the 3.5mm audio input

Powered by USB, plug into either a USB wall adapter or a nearby USB port on PC or TV

Support HDMI digital output with resolutions up to 1080p

Simple installation, plug play

Compatible with HDMI version 1.3

Specifications

Supports VGA Resolution
640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x769@60Hz,1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz

Output ports: HDMI support: 480P, 720P, 1080P@60Hz

1x 15 Pin VGA Female Socket (Cable Included)

1x 3.5mm Stereo Audio Female Socket (Cable Included)

1x Mini USB port for power (Cable Included)

1x HDMI Female Socket (HDMI Cable Not Included)

Important Note

This converter is NOT bi-directional. It only converts from VGA to HDMI

For laptop users, you must shift between the normal display and the one connected to VGA port. Please click the Fn+Screen Switch Key (Refer to notebook's User Manual for different Screen Switch Key)

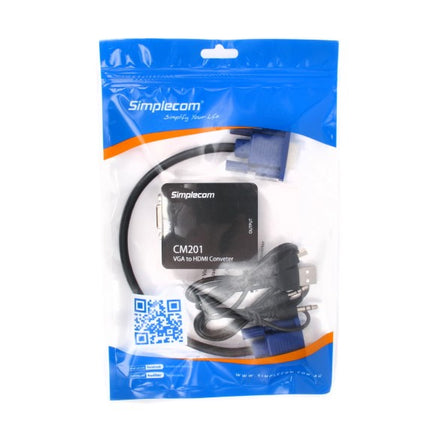

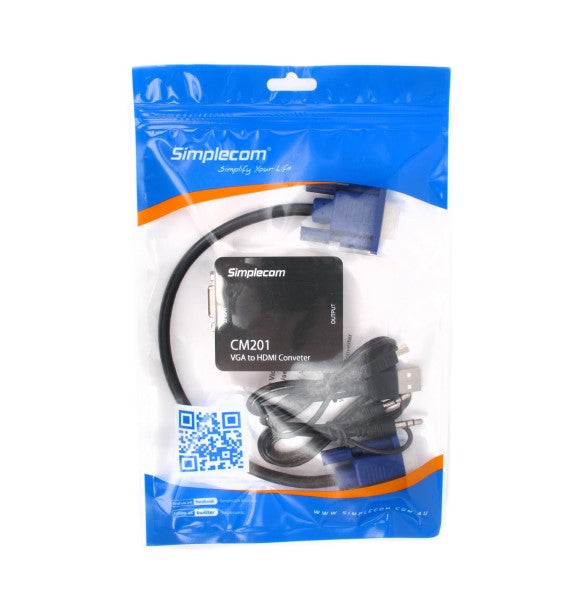

Package Contents

1x CM201 VGA to HDMI converter

1x USB Power cable

1x Short VGA Male to Male Cable

1x 3.5mm Stereo Audio Cable

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
