Simplecom CHT590 USB-C SuperSpeed 9-in-1 Multiport Docking Station HDMI 2.0

CHT590 is a 9-in-1 USB-C multiport docking station that enhance your laptop's connectivity through its USB-C port. It transforms a single USB-C port into nine ports, including three SuperSpeed USB-A ports, one SuperSpeed USB-C port, dual slot card reader, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.

If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.

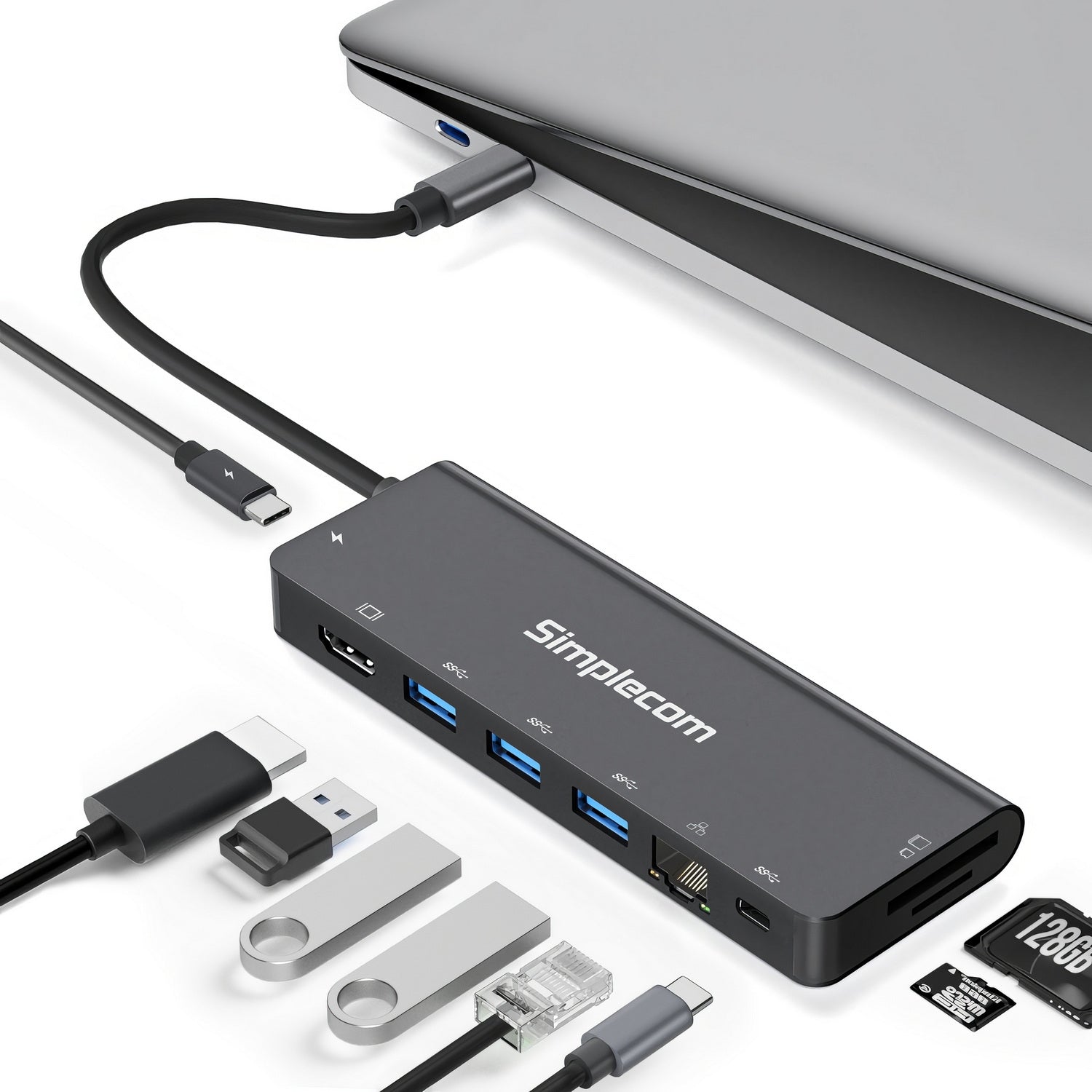

9-in-1 USB-C Docking Station
A portable all-in-one USB-C docking station with three SuperSpeed USB-A ports, one SuperSpeed USB-C port, SuperSpeed card reader slots, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.

HDMI 2.0 Video Output up to 4K@60Hz
The HDMI 2.0 port supports 4K video output at 60 frames per second. Compatible devices that support DP1.4 can output video at a resolution up to 4K@60Hz, ensuring smooth and fluid video playback, especially for fast-paced content or action movies.

SuperSpeed USB Hub and SD/MicroSD Card Reader
Includes 3x USB-A and 1x USB-C ports with a maximum transfer speed of up to 5Gbps, allowing you to connect USB storage devices, keyboard, mouse, printer, and more. The 2-slot SD/MicroSD card reader also supports SuperSpeed data transfer rates.

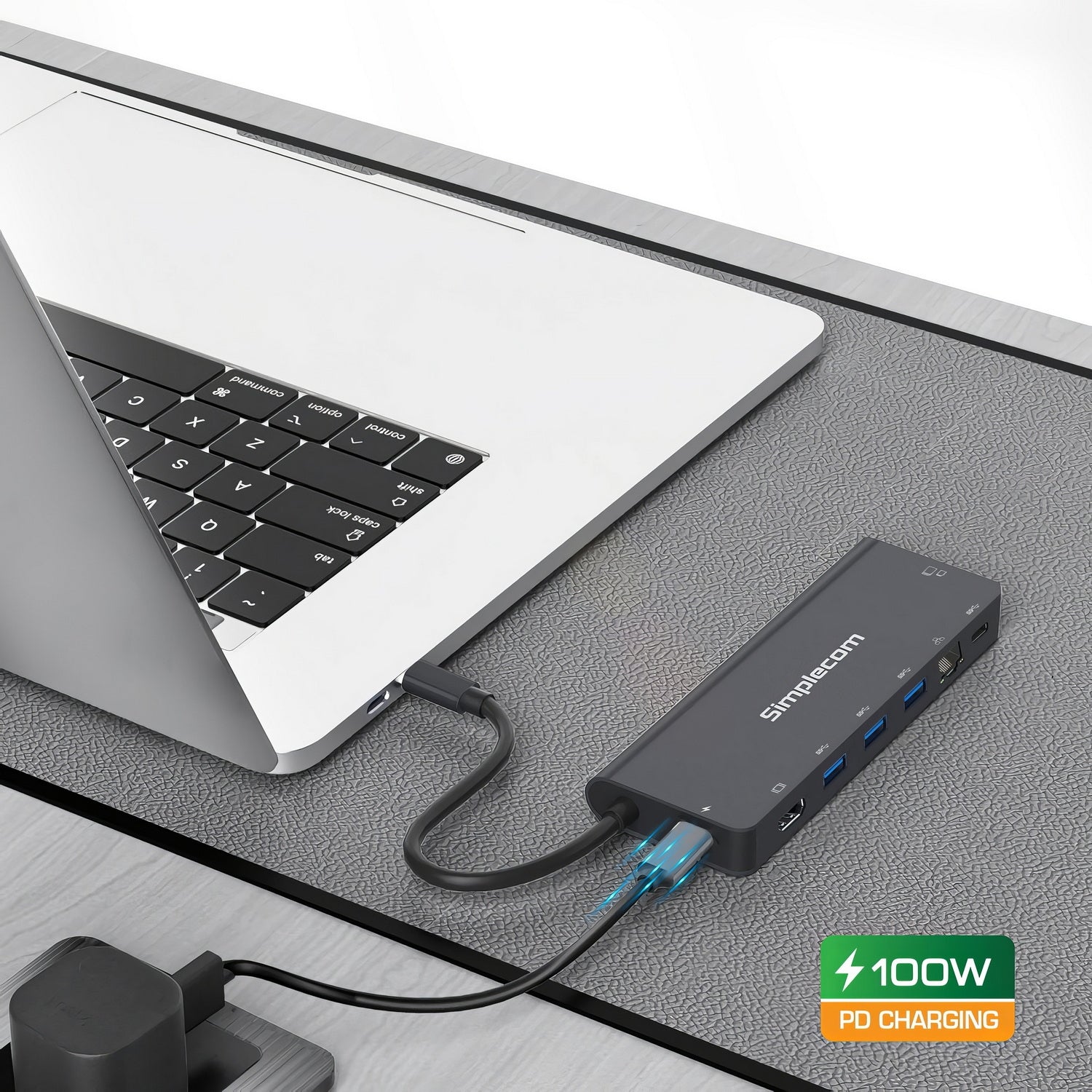

100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are in use. It supports PD 3.0 and up to 100W Power Delivery charging.

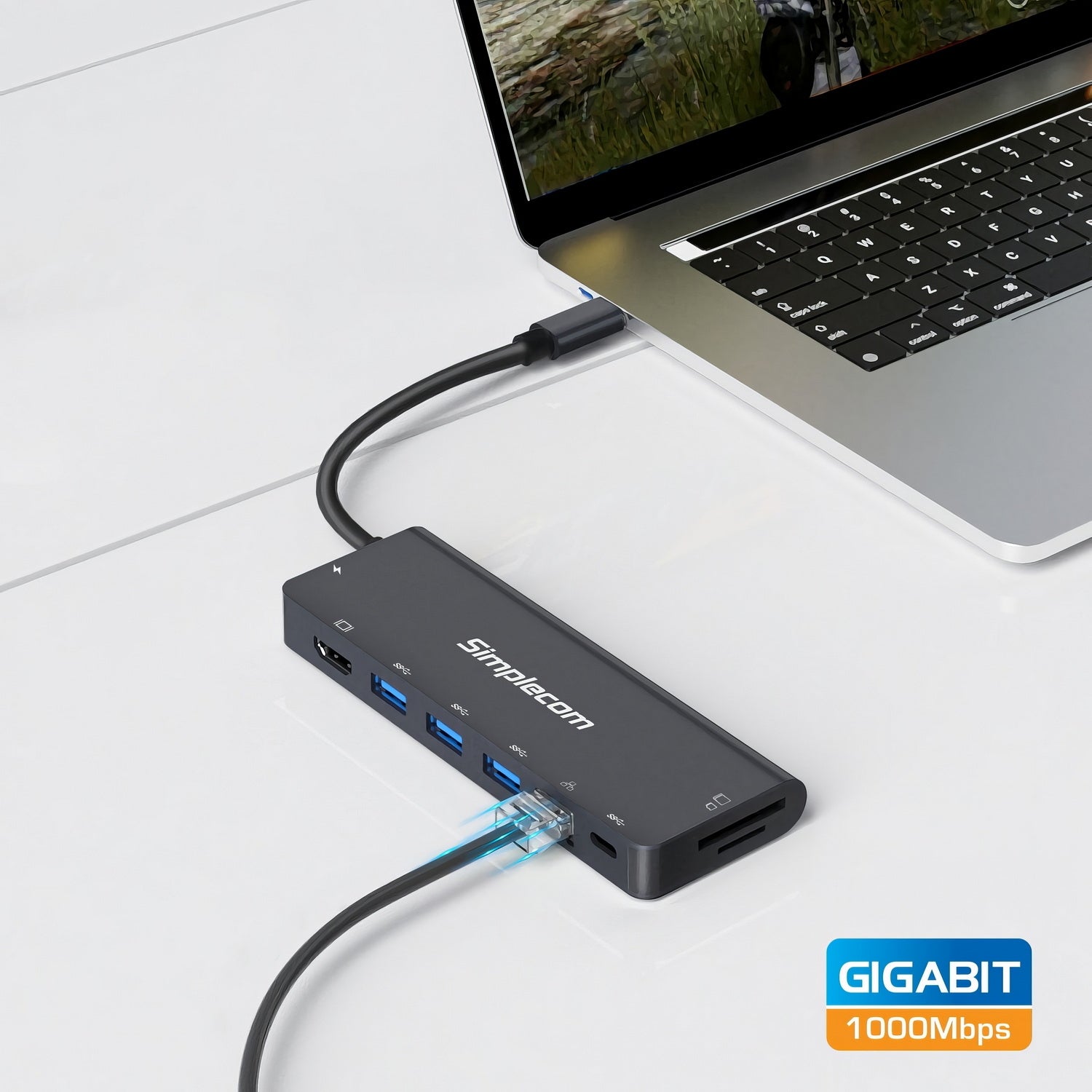

Gigabit Ethernet
Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps. This helps avoid latency and interference issues, providing a more consistent and reliable experience when streaming or downloading.

Stylish and Durable Aluminium Casing
The USB-C multiport adapter features a durable aluminium alloy housing, making it a stylish addition to your desk. The metal shell facilitates heat dissipation, ensuring stable performance.

Features

• 9-in-1 USB-C multiport docking station for comprehensive expansion to your laptop
• Single USB-C to extra USB ports, HDMI 2.0, Gigabit Ethernet, Card Reader and PD
• SuperSpeed USB ports support data transfer rate up to 5Gbps
• HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
• USB-C PD port for charging the laptop with up to 100W of power
• Durable stylish aluminium alloy housing
• Lightweight and portable, easy to carry along when travelling
• Built-in flexible USB-C Cable
• Plug play, no driver software required

Specifications

• Host Interface: USB-C
• USB Hub: 3x USB-A Female (SuperSpeed 5Gbps), 1x USB-C Female (SuperSpeed 5Gbps)
• HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
• Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
• PD Input: USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 45C
• Housing Material: Aluminium

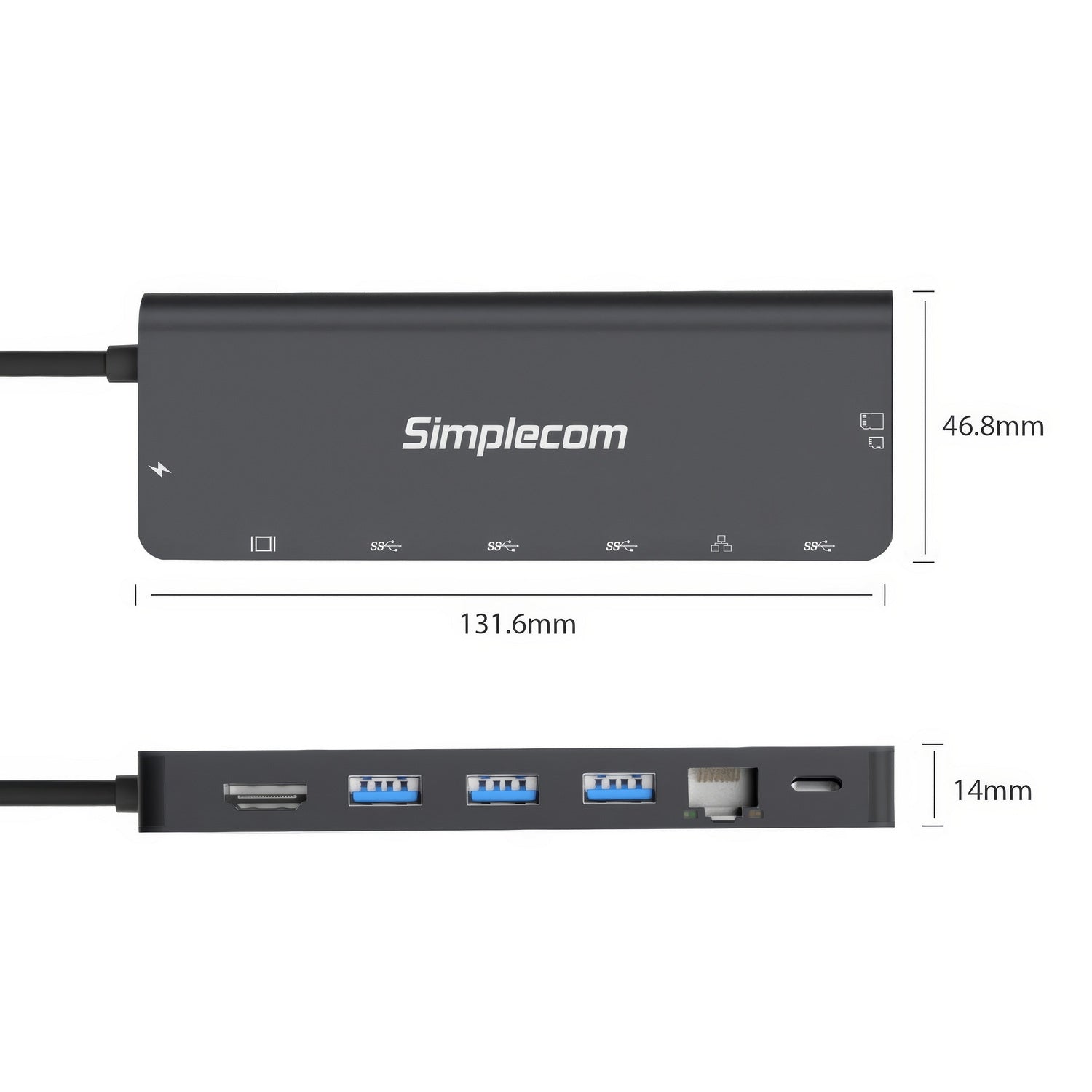

• Dimensions: 13 x 4.7 x 1.4 cm
• Cable Length: 19 cm
• Weight: 88g

System Requirements

• USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Thunderbolt USB-C port or USB4 port on laptop
• Operating system: Windows 10 or above, macOS 10.12 or above
• Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz

Important Note

• Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
• The USB-C PD port is for PD charging only, not for data transfer
